RHEEM RCY/RFA

PRODUCTS

RCY/RFA Classic Plus Electric Storage Water Heater

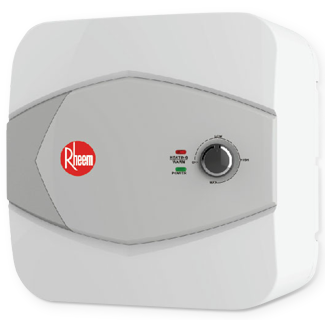

Rheem RCY

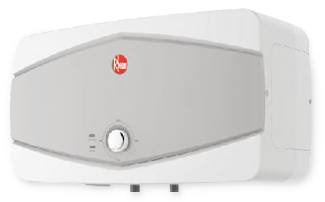

Rheem RFA
RCY/RFA Classic Plus electric storage water heaters are manufactured to the highest quality standards:
  • High impact resistance ABS body for added durability
  • Exclusive vitreous enamel coating to resist corrosion in inner tank
  • Self-sacrificing resistored magnesium anode rod to counter aggressive water and prolong lifespan of storage water heater
  • High density CFC free polyurethane foam with epoxy coated jacket for superior heat retention to reduce heating time and enhance energy savings
  • Pressure relief valve with built in check valve to prevent excess build-up pressure in inner tank
  • Adjustable immersion thermostat with thermal cut out to avoid overheating and prevent scalding
  • Enamel water connection to protect pipes from rust
  • On/off indicator lights for added safety to indicate operating status of water heater
  • High-performance Incoloy 840 immersion heating element to provide fast heating, protect heating element from rust, and withstand high temperature
  • Modern design with various tank capacities and built in installation brackets for wall mounting
MODEL NUMBER RFA-20 RCY-15 RCY-30
Capacity 20 litres 15 litres 30 litres
Power 2500W 1640W 2730W
Voltage 220-240V - 50/60Hz 230V - 50/60Hz
Max Working Temperature 75°C
Max Working Pressure 0.8MPa (8 bar)
Ingress Protection IPX 4
Heating Element Incoloy
Heater Dimension 606 x 303 x 345mm 395 x 395 x 338mm 445 x 445 x 383mm
