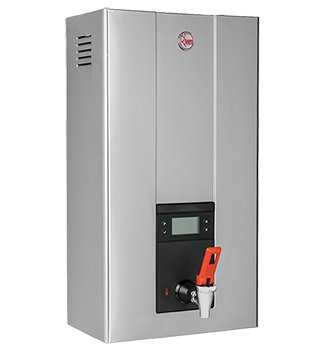

Laser Hot Water Boiler

Technical Specifications
Classic White Powder Coat   710003 710005 710007 710010 710015 710025 710040
Classic Stainless Steel       720007 720010 720015 720025 720040
Capacity litres 3 5 7.5 10 15 25 40
Delivery-Initial litres 3.5 6 8.5 11 17 27 42
Recovery cups 20 35 50 65 100 159 247
L/h 17.5 21 21 21 21 33 41
cups/hr 103 123 123 123 123 194 241
Approx Weight Empty kg 6 8 9 10 15 17 19
Approx Weight Full kg 10 15 19 22 34 47 67
Minimum Water Pressure kPa 50 50 50 50 75 75 100
Maximum Water Pressure kPa 1000 1000 1000 1000 1000 1000 1000
Input kW 1.8 2.4 2.4 2.4 2.4 3.6 4.6
Electrical Connection Supplied with 10 Amp 3 Pin Plug and Flex Hard Wired by Electrician
Plumbing Connections ½"BSPM

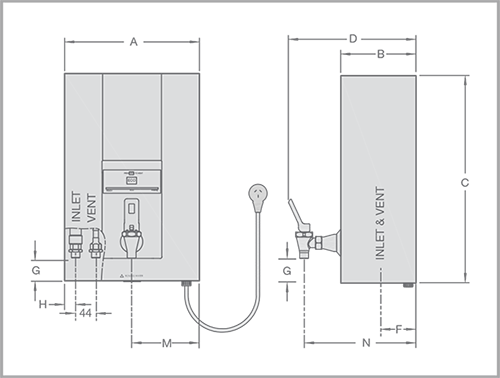

Dimensions A mm 283 334 334 334 490 490 490
  B mm 143 176 176 176 180 235 325
  C mm 400 430 515 615 615 615 615
  D mm 234 267 267 267 271 326 416
  E mm 15 15 15 15 8 8 8
  F mm 50 50 50 50 32 32 32
  G mm 53 53 53 53 103 103 103
  H mm 18 18 18 18 32 32 32
  N mm 212 245 245 245 249 304 394
  M mm 142 167 167 167 245 245 245
Cup Size: 200ml cup

WARRANTY*

LAZER BOILING WATER UNIT
1 year on tank
1year parts and labour
Our reputation of quality and reliability is unsurpassed. And though we make sure that our customers are satisfied, we never are. Rheem engineers are always developing ways to keep our products more energy efficient, more durable and easier to install and maintain.
