RHEEM EHG SERIES

PRODUCTS

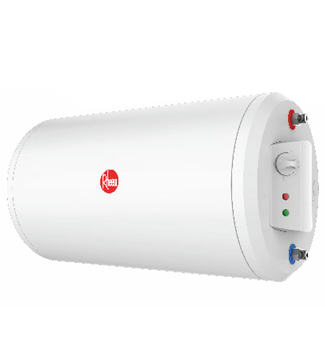

EHG Classic Electric Storage Water Heater

Advanced Features:
  • Universal connections
  • Universal bracket and mounting for easy installation
  • Exclusive vitreous enamel coating to resist corrosion in inner tank
  • Self-sacrificing magnesium anode rod to counter aggressive water to prolong lifespan of water heater
  • CFC free polyurethane foam with epoxy coated jacket for superior heat retention to reduce heating time and enhance energy savings
  • Pressure relief valve with built in check valve to prevent excessive pressure in inner tank
  • Thermal cut out to avoid overheating and prevent scalding
  • Adjustable immersion thermostat to allow users to set their desired temperature settings
  • Water connection pipes with enameled coating for protection against corrosion
  • On/off indicator lights for added safety to indicate operating status of water heater
  • High performance Incoloy 840 immersion heating element to provide fast heating, protect heating element from rust, and withstand high temperature
  • Service panel on the side of the heater facilitates easy access for maintenance or servicing
Model Tank
Capacity
(Litres)
Mounting Dimensions (mm) Approx.*
Heating Time
to 60°C(mins)
Preset Temperature
(°C)
Heating Element Input
(240V)
(kW)
Shipping Weight
(kg)
Operating Weight
(kg)
A B C D E
EHG-30 30 Horizontal 540 380 270 165 400 24 60°C 3 17 47
EHG-40 40 640 380 270 280 400 32 21 61
EHG-50 50 740 380 270 400 400 40 22 72
EHG-60 60 860 380 270 500 400 48 24 84
EHG-80 80 970 410 300 500 430 64 29 109
EHG-90 90 1055 410 300 500 430 72 30 120
EHG-100 100 1155 410 300 500 430 80 32 132
