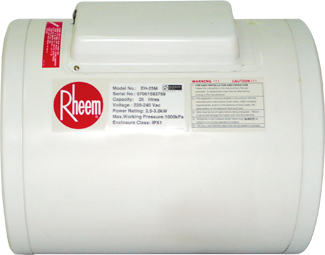

ELECTRIC STORAGE WATER HEATER HORIZONTAL MODEL - EH SERIES

Rheem Water Heaters
Our reputation of quality and reliability is unsurpassed. And though we make sure that our customers are satisfied, we never are. Rheem engineers are always developing ways to keep our products more energy efficient, more durable and easier to install and maintain.

The Rheem Advantage
Once again, the latest Rheem Point of Use electric storage water heaters are transformed into four features-packed models which represents the hallmarks of the Quality, Design and much talked about Safety and Reliability.

With over 100 years of experience of manufacturing storage water heaters the RHEEM name is a household name around the world. With meticulous care in using the most reliable components in our products, consumers continue to ask for RHEEM by name whenever they need a new water heater for their home.

Product Features
  • Glasslined Tank
    The exclusive Rheemglas vitreous enamelling process begins at 8700 C which fuses coating to tank to create an impervious layer of protective surface that resists the corrosive attack of hot water chemicals.
  • Anode Rod
    Equalizes aggressive water action resulting from any electrochemical process in hot water. Tank life is prolonged for use.
  • Heater Jacket
    External heater is protected by heavy duty precoated steel jacket which minimize damage from rough handling. Insulation- thick CFC free polyurethane insulation helps to keep the heat within the tank, thereby conserving precious energy and reducing operating cost.
  • Temperature Control
    Adjustable automatic thermostat regulates temperature to within safe limits. In addition, it has a thermal safety overload which cuts off electrical power in an unlikely event if temperature rises to an unsafe level.
  • Heating Element
    Low density incology sheathed stainless steel immersion element ensures the most efficient heat transfer to water and resists premature failure due to “dry firing” when water is inadvertently drained off from the tank.
  • TPR Valve
    Industrial grade temperature and pressure relief valve prevents pressure from exceeding preset value and prevents the temperature from rising too high by releasing water to the floor trap via the drain pipe.
  • Servicing
    Location of the service panel along the heater body facilitates easy access for maintenance and servicing.
  • Installation
    Space saving horizontal layout using universal bracket for both wall or ceiling mounting. All brackets and mounting accessories are included.

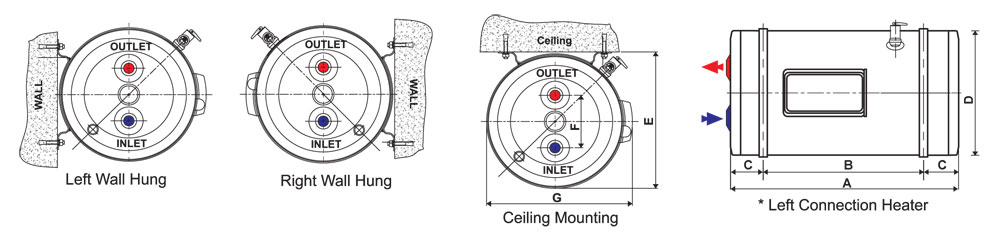

• All Dimensions in mm
* Please specify Left or Right connection when ordering. Above diagram shows Left connection heater.
Model

Tank
Capacity
(Litres)

Mounting Dimensions (mm) Heating Time (mins)* Preset Temperature
(°C)

Heating Element
Input kW
(240V)

Empty Tank Weight
(kg)
Operating Tank Weight
(kg)
A B C D E F G
EH-25M 25 Horizontal 450 320 65 Ø370 390 150 405 23 65 3 17 42
EH-40M 40 Horizontal 655 341 157 Ø370 390 150 405 37 65 3 22 62
EH-55M 55 Horizontal 790 478 156 Ø370 390 150 405 50 65 3 25 80
EH-75M 75 Horizontal 1130 812 159 Ø370 390 150 405 69 65 3 31 106
EH-100M 100 Horizontal 962 632 164 Ø458 478 240 493 92 65 3 36 136
