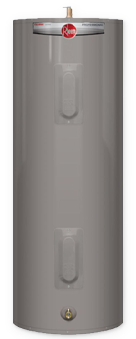

Electric Storage Floor Mounted Water Heater - 85V Series

Electric Storage Floor Mounted Water Heater - 85V Series, Single Element
- Temperature and pressure relief valve included
- Isolated tank design reduces conductive heat loss
- High efficiency resistored heating elements
- Anode rod equalizes aggressive water action
- Electric junction box located above heating elements for easy installation
- Over-temperature protector cuts off power in excess temperature situations
- Foam insulated
- Single element and Thermostat
- Stainless steel heating elements
- Maximum working pressure of 150 PSI (10 BARS)
- Compliance: IEC 60335-2-21
Model Tank
Capacity
Stainless Steel Element Operating
Weight (Kg)
Heater
Dimension
Shipping
Weight (Kg)
Shipping Dim.
(Approx)
Current Draw
(amps)
Over Current
Protection (amps)
USG Litres Voltage Single
Phase
(Kw) Dia
(mm)
HT
(mm)
L
(mm)
B
(mm)
HT
(mm)
85V30-1 30 114 240V 4.5 154 452 1165 40 470 470 1200 18.75 25
85V40-1 40 152 240V 4.5 200 503 1200 48 520 520 1230 18.75 25
85V52-1 50 190 240V 4.5 244 485 1455 54 500 500 1490 18.75 25
85V66-1 65 247 240V 5.5 318 530 1400 71 560 560 1530 22.9 30
85V80-1 80 304 240V 5.5 388 585 1500 84 605 605 1530 22.9 30
85V120-1 120 456 240V 5.5 609 720 1590 153 850 850 1770 22.9 30
* Optional element available: 1.5kw, 3kw@240 volt. Water connections pipes for inlet and outlet – 3/4 inch. N.P.T.
Our reputation of quality and reliability is unsurpassed. And though we make sure that our customers are satisfied, we never are. Rheem engineers are always developing ways to keep our products more energy efficient, more durable and easier to install and maintain.
