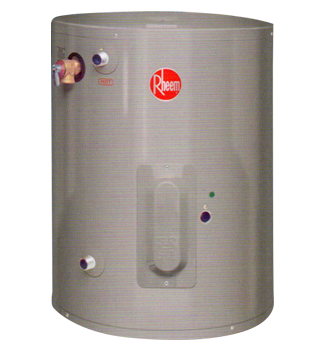

ELECTRIC STORAGE WATER HEATER VERTICAL/horizontal MODEL - 85 SERIES

Rheem water heaters with special features to ensure the heater is safer, more reliable and works longer...
  • Exclusive Rheemglas enamel tank protection against corrosion by coating the inner tank with an exclusive Rheemglas and fused with solid steel at 870ºC. The result is a smooth, tough glass-like lining that effectively resists the corrosive attack of hot water chemicals and ensures a longer life span on Rheem heaters. Tank is designed and tested to withstand 2000kpa hydrostatic test pressure for pressure of 1000kpa.
  • UL approved combined temperature and pressure relief (TPR) safety valve provides protection against excessive water pressure (Pre-set at 0.98Mpa). The TRP allows tank to be manually drained off to facilitate servicing.
  • Adjustable thermostat with over temperature protection is a safety device that automatically and safely cuts off the power in the event the preset temperature is exceeded, thus prevents scalding by hot water. Thermostat conserves electricity by cutting-off power supply to the heater once it has reached the preset temperature.
  • Incoloy sheathed immersion heating element promotes longer, more efficient performance. Efficient heat transferring design reduces sediments built-up in tank.
  • Anode rod protects the inner tank from corrosion by equalizing agressive water reaction. Thus extending the lifespan of Rheem heaters.
  • CFC free polyurethane insulation between inner tank and epoxy coated steel jacket provides maximum heat retention and minimize operating after year of service
  • Compliance to international requirement IEC 60335-2-21 and U.L 174. Tested and approved by PSB Corporation.

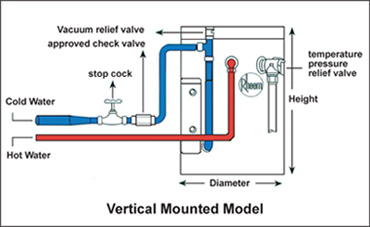

53883ba82209c0364f2cf28e_residential-water-heaters-diagram.jpg 53a102bcd3a2e38f32a3d848_rheem85_hori.JPG
Model Tank
Capacity
Stainless Steel Element Operating
Weight (Kg)
Heater
Dimension
Shipping
Weight (Kg)
Shipping Dim.
(Approx)
Current Draw
(amps)
Over Current
Protection (amps)
Approx. Heat up
time to 60°C
Mounting
USG Litres Voltage Single
Phase
(Kw) Dia
(mm)
HT
(mm)
L
(mm)
B
(mm)
HT
(mm)
85VP6S 6 23 240V 1.5/3.0 42 400 385 17 460 420 420 6.25/12.5 15 18.5 mins Vertical
65SVP10S 10 38 240V 1.5/3.0 57 400 440 19 460 420 470 6.25/12.5 15 30.4 mins Vertical
65SVP15S 15 57 240V 3.0 80 450 505 26 510 470 540 6.25/12.5 15 44.8 mins Vertical
85VP20S 20 76 240V 3.0 111 500 640 32 560 520 670 12.5 15 60.8 mins Vertical
85VP30S 30 113 240V 3.0 159 530 740 43 620 570 810 12.5 15 91.2 mins Vertical
EP 15-H 15 57 240V 3.0 84 400 633 27 430 430 690 12.5 15 44.8 mins Horizontal
EP 20-H 20 76 240V 3.0 114 400 805 31 470 440 860 12.5 15 70.2 mins Horizontal
Our reputation of quality and reliability is unsurpassed. And though we make sure that our customers are satisfied, we never are. Rheem engineers are always developing ways to keep our products more energy efficient, more durable and easier to install and maintain.
