RHEEM - 82V SERIES

PRODUCTS

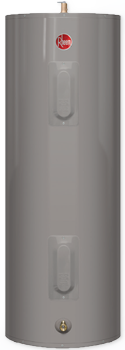

Electric Storage Floor Mounted Water Heater - 82V series

Fury Rheemglas® Electric Water Heater
- 82V series, Double Element

Available in 113, 152, 190, 247, 304 and 456 Liter Tall Models
- Temperature and pressure relief valve included
- Isolated tank design reduces conductive heat loss
- High efficiency resistored heating elements
- Anode rod equalizes aggressive water action
- Electric junction box located above heating elements for easy installation
- Over-temperature protector cuts off power in excess temperature situations
- Automatic thermostat keeps water at desired temperature
- Foam insulated
- Dual element and Thermostat
- Stainless steel heating elements
- Maximum working pressure of 150 PSI (10 BARS)
Model Tank
Capacity
Voltage Single
Phase
kW Heater
Dimension
Operating
Weight (Kg)
Shipping Dimension
(Approx)
Approx.
Shipping
Weight (Kg)
USG Litres Height
(mm)
Diameter
(mm)
Length
(mm)
Breadth
(mm)
Height
(mm)
82V30-2 30 114 240V 4.5 1180 460 151 470 470 1200 36
82V40-2 40 151 240V 4.5 1200 510 197 520 520 1225 43
82V52-2 50 189 240V 4.5 1460 490 245 500 500 1490 49
82V66-2 65 246 240V 5.5 1510 540 317 555 555 1530 68
82V80-2 80 303 240V 5.5 1510 595 387 610 610 1530 80
82V120-2 120 454 240V 5.5 1610 730 606 840 840 1750 147
* Optional element available: 1.5kw, 3kw@240 volt. Water connections pipes for inlet and outlet – 3/4 inch. N.P.T.
